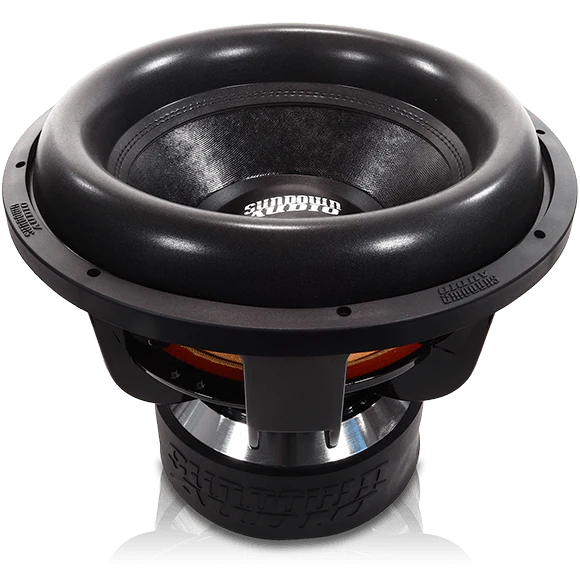

X-Series v.3 15" Subwoofer

  • £699.99
    Unit price per
Tax included.


  • RMS 2000 watts
  • Dual 1 or 2 ohm voice coil
  • Made for extremely deep bass
  • Triple-stacked magnet
  • 3” voice coil
  • Hyper-extended pole
  • Built to order

Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the V.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.

Specifications

T/S SPECS X V.3 15″ D1 X V.3 15″ D2
RE (Ohms) 1.4 3.2
FS (Hz) 31.418 31.423
VAS (L) 45.907 45.924
Qes 0.486 0.561
Qms 2.562 2.801
Qts 0.409 0.468
Le (mH)
BL (NA) 15.518 21.831
Mms (Grams) 423.721 423.436
Cms (uM/N) 60.563 60.585
Sens (dB @ 1w/1m) 86.5dB

85.9dB

Xmax 30mm

30mm

Enclosure Specifications

X v.3 15
Sealed Enclosure N/A
Ported Enclosure 4.25 cu ft
Recommended Tuning 32hz
Recommended Port Area 68 sq in
Displacement 0.22 cu ft
Depth 11.6"
Outside Diam. 15.51"
Cutout 13.83"
Physical Dimensions Download
